BOP Cleaning Tool WirlTool®

The Innovar WirlTool®

The most effective BOP cleaning tool on the market.

Product Datasheet

Download datasheet

The Innovar WirlTool®

The WirlTool® creates a powerful circular flow pattern that establishes a vortex that draws/pulls debris out from the Blow Out Preventer (BOP) cavities and crevices. It is designed to remove metallic/non-metallic debris that could adversely affect a BOP's performance.
The centrifugal force created by the circular flow exerts an increased pressure against the pipe wall and thereby a more efficient washing effect.

Can be run at 100 bar pressure and at a pump rate of 5000 l/min.
The washing effect works above and below the outlet point, no need for accurate placement for optimal effect.

The Innovar WirlTool® also minimize the risk of water cutting the BOP sealing elements as opposed to traditional jetting. Available in sizes to clean out 6 5/8" - 18 3/4" BOPs.

Combined with Innovar's powerful Innomag® and Magnum Fishing Magnet® you are ensured the most efficient bottom-hole assembly for BOP cleaning on the market.
WT100%20Wirl
WT100%20Wirl

The Innovar WirlTool®

The WirlTool® creates a powerful circular flow pattern that establishes a vortex that draws/pulls debris out from the Blow Out Preventer (BOP) cavities and crevices. It is designed to remove metallic/non-metallic debris that could adversely affect a BOP's performance.
The centrifugal force created by the circular flow exerts an increased pressure against the pipe wall and thereby a more efficient washing effect.

Can be run at 100 bar pressure and at a pump rate of 5000 l/min.
The washing effect works above and below the outlet point, no need for accurate placement for optimal effect.

The Innovar WirlTool® also minimize the risk of water cutting the BOP sealing elements as opposed to traditional jetting. Available in sizes to clean out 6 5/8" - 18 3/4" BOPs.

Combined with Innovar's powerful Innomag® and Magnum Fishing Magnet® you are ensured the most efficient bottom-hole assembly for BOP cleaning on the market.

Applications

  • BOP and Riser cleaning
  • Smaller sizes can also be used for cleaning in the PBR area

Features

  • Solid mandrel
  •

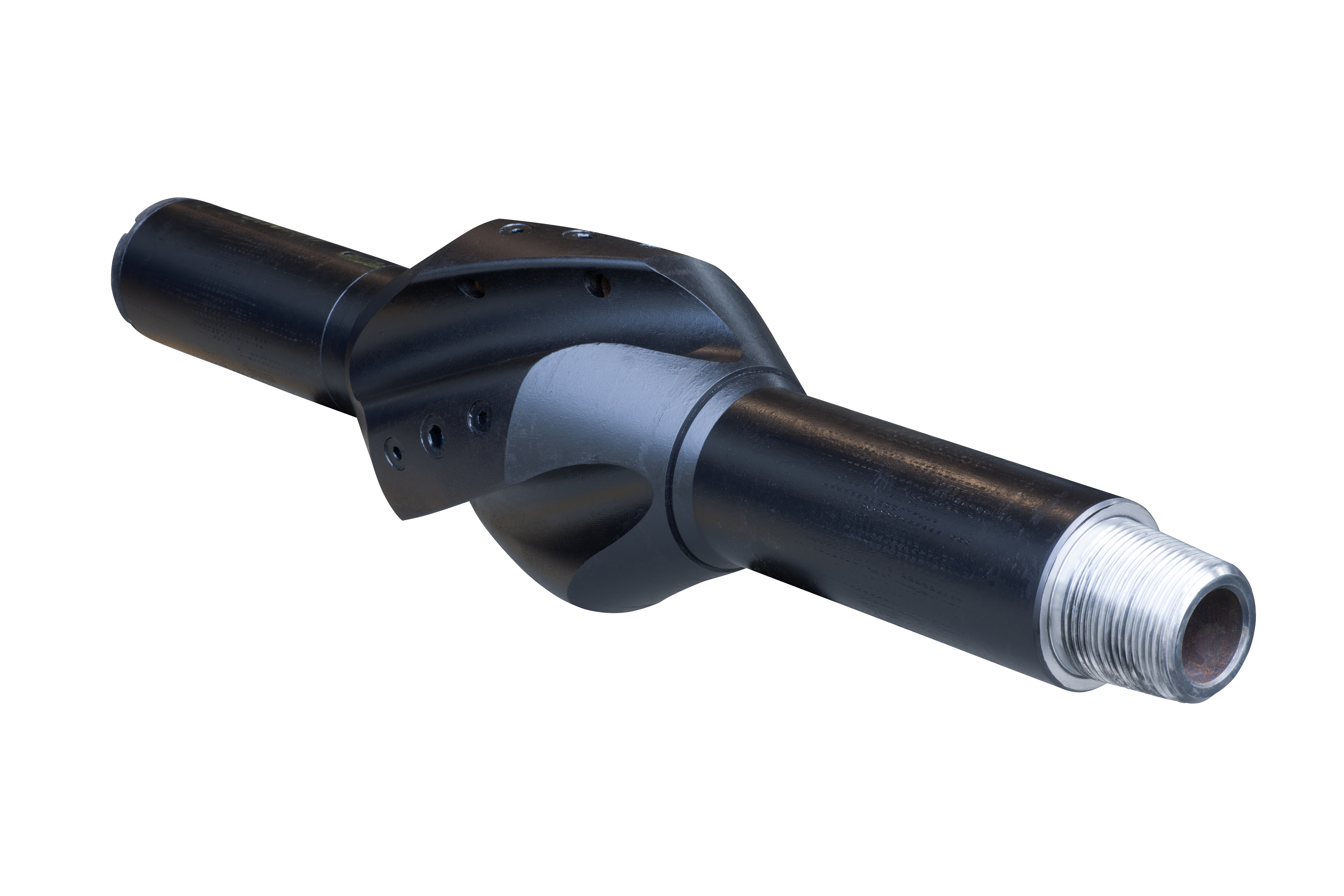

Wirltool

Benefits

  • Creates a powerful circular flow pattern that establishes a vortex that draws/pulls debris from the BOP cavities and crevices
  • Minimizes the risk of water cutting the BOP sealing elements as opposed to traditional jetting tools.
  • Reduces risk of failing BOP pressure tests caused by metal shavings
  • Prevents expensive and time consuming maintenance of the BOP on surface
  • Reduces spill of mud on deck when riser is laid down

Animation of the WirlTool® Effect
