INNOMAG® IMX CT

String magnets for coiled tubing

With no moving parts and with Innovar magnet technology, it is the optimal tool for all CT clean-out operations.

Product Datasheet

Download datasheet
PDS-012-03%20(Innomag%20CT%20IMX%20Product%20Datasheet)

INNOMAG® IMX CT

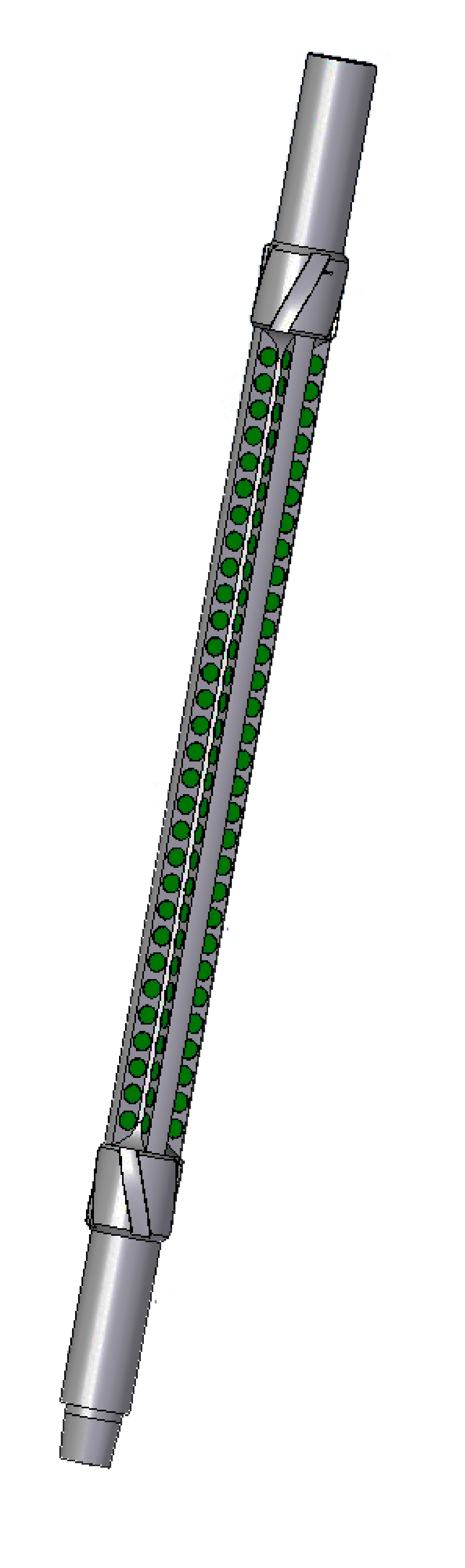

The Innomag® IMX CT string magnet is a high capacity wellbore clean-up tool, especially designed for coiled tubing applications.
The Innomag® IMX CT string magnet is a high capacity wellbore clean-up tool, especially designed for coiled tubing applications. It is capable of removing large amounts of ferrous debris that cannot be circulated out. With no moving parts and with Innovar magnet technology, it is the optimal tool for all CT clean-out operations.
Innomag%20IMX%20CT
Innomag%20IMX%20CT

INNOMAG® IMX CT

The Innomag® IMX CT string magnet is a high capacity wellbore clean-up tool, especially designed for coiled tubing applications.
The Innomag® IMX CT string magnet is a high capacity wellbore clean-up tool, especially designed for coiled tubing applications. It is capable of removing large amounts of ferrous debris that cannot be circulated out. With no moving parts and with Innovar magnet technology, it is the optimal tool for all CT clean-out operations.

Applications

  • Coiled tubing wellbore clean-up operations
  • Milling operations

Features

  • Magnetic field directed out towards casing and well cavities
  • Fixed stabilizers sleeves
  • Large fluid bypass
  • No moving parts
  • No internal bearings or wear parts
  • Full 360° stabilization
  • Magnet elements integrated in the tool
  • Available in sizes 3,500", 3,600” and 3,625" OD

Benefits

  • Remove ferrous debris unable to be circulated out
  • Excellent cleaning capabilities due to extreme magnet range
  • Large magnetic area
  • Low maintenance and easy cleaning
  • Multiple Innomag® IMX CT in one string decrease number of runs
